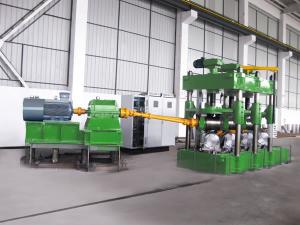

Tube Straightening Machine

Features
1. The upper and lower machine frames of our tube straightening machine are welded and connected by six vertical posts. The vertical-post structure facilitates machine adjustment and working condition observation.
2. This pipe straightening equipment works flexibly. The straightening rolls are firstly installed on the roll chock. Then the straightening rolls with the roll chock will be fastened to the slide carriage of the upper and lower machine frames with screws. Angel of the straightening rolls can be adjusted according to the diameter of the straightened tube.
3. Gasket is used to control the up and down movement of the slide carriage. This structure makes machine adjustment and maintenance easy.

Application
This tube straightening machine is suitable for strengthening metal tubes (stainless steel tubes, carbon steel tubes and alloy steel tubes) whose diameters are in the range from 114 to 385mm.

Major components
Our tube leveling machine mainly consists of the upper frame, base, column, seat of lifting roll, lower roll seat, reducer of main motor, universal shaft, and the electric system.

Structure
This is a seven-roll vertical staggered tube straightening machine. The straightening rolls adopt the arrangement mode of 2-2-2-1 and are arranged at a slant in two staggered rows. That means the straightening rolls are arranged angled to the center line of the straightened tubes. Three rolls are distributed in the upper row while the other four rolls are distributed to the lower row.

Dimension and Performance of Tube Straightening Machine

Order Item Technical Parameters
1 Maximum yield limit of the straightened tube 510MPa
2 Diameter of the straightened tube Ф114~Ф385mm
3 Maximum wall thickness of the straightened tube 4~25mm
4 Straightening speed 6~30m/min
5 Maximum stroke of the upper rolls 310mm
6 Adjustment range of the lower rolls (manual) 0~20mm
7 Arrangement mode of the straightening rolls 2 -2 -2 -1 (Staggered)
8 Straightness of the straightened tube 1mm/m
9 Minimum length of tube 4000mm
10 Maneuvering lifting speed of the upper rollers 4.174mm/s
11 Adjustment angle range of the straightening rolls (manual) 28.5 °~33 °
12 Spacing of the straightening rolls 1050mm
13 Throat diameter of straightening roll 400mm
14 Length of the straightening roll 550mm
15 Material of straightening roll 9Cr2MoV
16 Material of the vertical post 45 #
17 Retarder Velocity ratio 12.93
Quantity 2
18 Main motor Variable frequency motor power 75kW/set
Revolving speed 750R/min
Quantity 2
19 Lifting motor for upper rolls Worm retarder I=36
Power 5.5kW
Revolving speed 960r/min
Quantity 3
20 Total weight ≈45t
21 Overall dimension (L×W×H) ≈11.3.×4.5.×3.7m
